What you need to know about TCXO
Release time: 2025-05-26
In modern technology, precise time and frequency control is essential for many applications. Temperature compensated crystal oscillators (TCXOs) are one of the key technologies to achieve this. As a supplier of crystal frequency devices, we are well aware of the importance of TCXOs in many industries. In this article, we will provide you with a detailed introduction to what TCXO is, why it is indispensable in industry applications, and how to choose the most suitable TCXO for your needs.
Table of Contents
What is a TCXO?

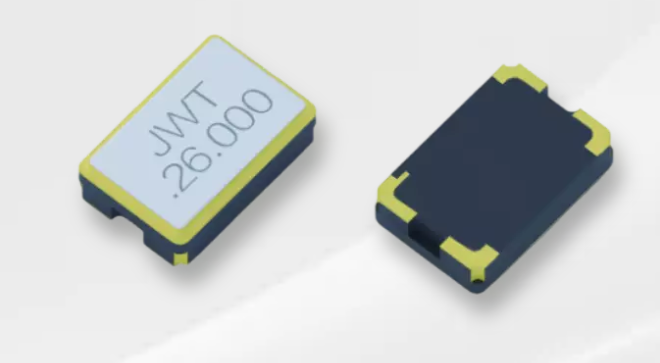

TCXO (Temperature Compensated Crystal Oscillator) is an oscillator that can maintain frequency stability in an environment with large temperature fluctuations. It combines the high accuracy of traditional crystal oscillators with temperature compensation circuits, allowing TCXOs to provide extremely stable frequency output under various environmental conditions. Its main advantage is the ability to provide accurate frequency over a temperature range of -40°C to +85°C or wider, usually with a deviation of less than ±0.1ppm.
How TCXO works
TCXO monitors changes in ambient temperature through a built-in temperature sensor and adjusts its output frequency in real time to offset the impact of temperature fluctuations on the crystal oscillator. Compared with ordinary crystal oscillators, temperature compensated crystal oscillator not only provides higher frequency stability, but also can maintain accurate frequency output in environments with great temperature changes. This technology makes it an ideal choice in many applications that require high-precision time synchronization.
What is the core advantages of TCXO
High precision and stability: TCXO can provide extremely high frequency stability over a wide temperature range, and its frequency fluctuation can be controlled between ±0.1ppm and ±2ppm, ensuring the accuracy of time synchronization and signal transmission in critical systems.
Ability to resist temperature changes: Due to the built-in temperature compensation mechanism, TCXO can maintain high frequency stability in an environment with temperature fluctuations and avoid the negative impact of temperature changes.
Low power design: TCXO has the characteristics of low power consumption and is particularly suitable for applications that require high performance and long working time, such as portable devices and battery-powered systems.
Wide range of applications: From communication equipment, precision instruments, automotive electronics to aerospace, temperature compensated crystal oscillator can provide a reliable clock source for equipment to ensure stable operation of equipment under extreme conditions.
Application of TCXO in different industries
Communication industry: TCXO is crucial in communication base stations, satellite communications, wireless devices and other fields. It can ensure the frequency synchronization of all devices in the system and improve the stability and accuracy of data transmission.
Automotive electronics: With the development of smart cars, TCXO plays a key role in the navigation system, ADAS (Advanced Driver Assistance System) and in-vehicle communications of automobiles, ensuring the high precision and high reliability of the system.
Precision instruments: TCXO is widely used in scientific instruments, medical equipment and test equipment to ensure the accuracy of measurement results.
Consumer electronics: In consumer electronics such as smart watches and IoT devices, temperature compensated crystal oscillator can provide stable frequency output and enhance the overall performance of the equipment.
Aerospace: The application of TCXO in high-end aerospace equipment such as aircraft and satellites ensures the time synchronization and stable operation of flight control systems.
How to choose the right TCXO?
Choosing the right TCXO is the key to ensuring system stability and accuracy. Here are several important selection criteria:
Frequency stability: Choose the frequency stability that meets your needs. Generally speaking, high-stability TCXO are more suitable for precision measurement and high-end applications, but their prices are higher.
Temperature range: Select the appropriate operating temperature range according to the use environment. Ordinary products can withstand temperature changes from -40°C to +85°C, while higher-end products can operate in extreme environments from -55°C to +125°C.
Power requirements: For battery-powered devices, low-power TCXOs can effectively extend battery life.
Package size: Select a TCXO of the right size according to the space limitations of the device to ensure that it can be integrated with the existing system.Such as TCXO 1612, TCXO 3225.
Cost-effectiveness: Select cost-effective products according to the project budget, taking into account performance and cost.
Conclusion
Temperature compensated crystal oscillator plays an important role in ensuring system stability and high precision. It has been widely used in communications, automotive electronics, aerospace, consumer electronics and other fields. If you need to know more about TCXO or have related technical needs, please feel free to contact Jinweite. We will provide you with professional technical support and solutions to help you choose the most suitable product.
